MSI Motherboard MAG Z790 TOMAHAWK WIFI

Price changes in the past 30 days

07/19/2025 €239,00 EUR
€239,00 €249,00
-5%
inkl. MwSt

Liefertermin

MSI Punkte
Du kannst beim Kauf dieses Produkts etwa 36 MSI-Punkte können zum Einlösen kostenloser Geschenke verwendet werden, wie zum Beispiel:

  • Kupon Steam/XBOX
  • Kupon Carrefoura
Weitere Details und Konditionen hier MSI-Punkte erhalten, wenn du bereits am MSI Prämienprogramm teilnimmst.

Garantie
Garantie von 3 Jahren

Free Package

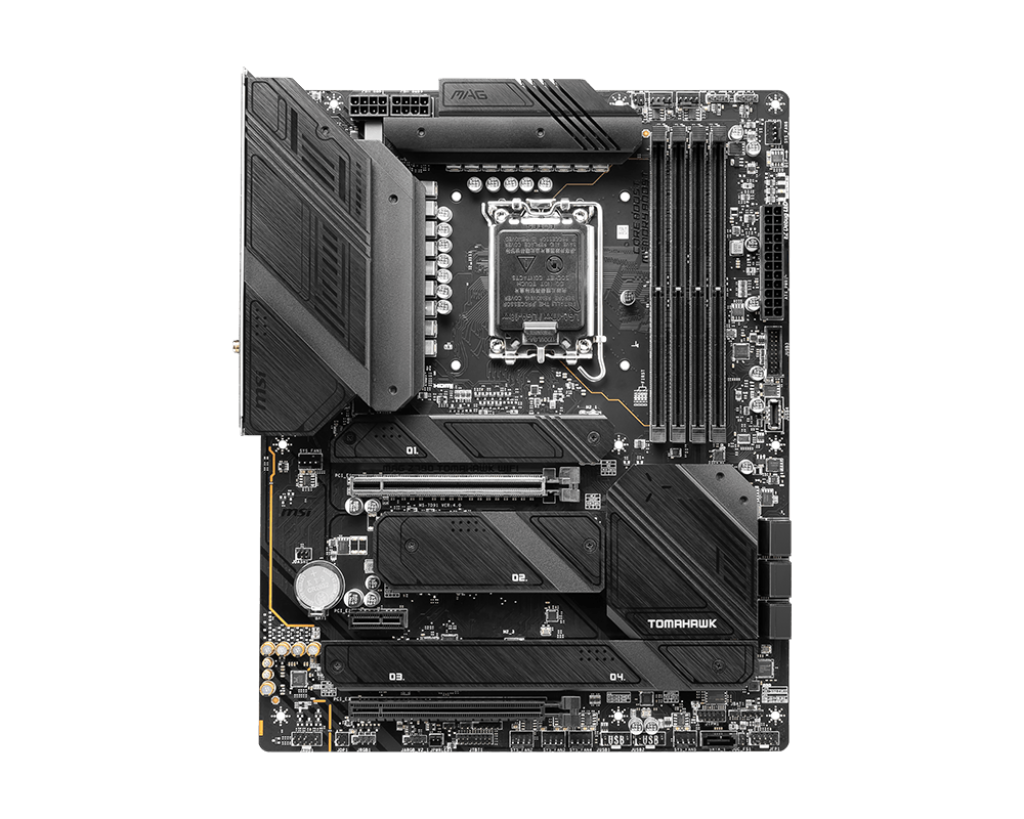

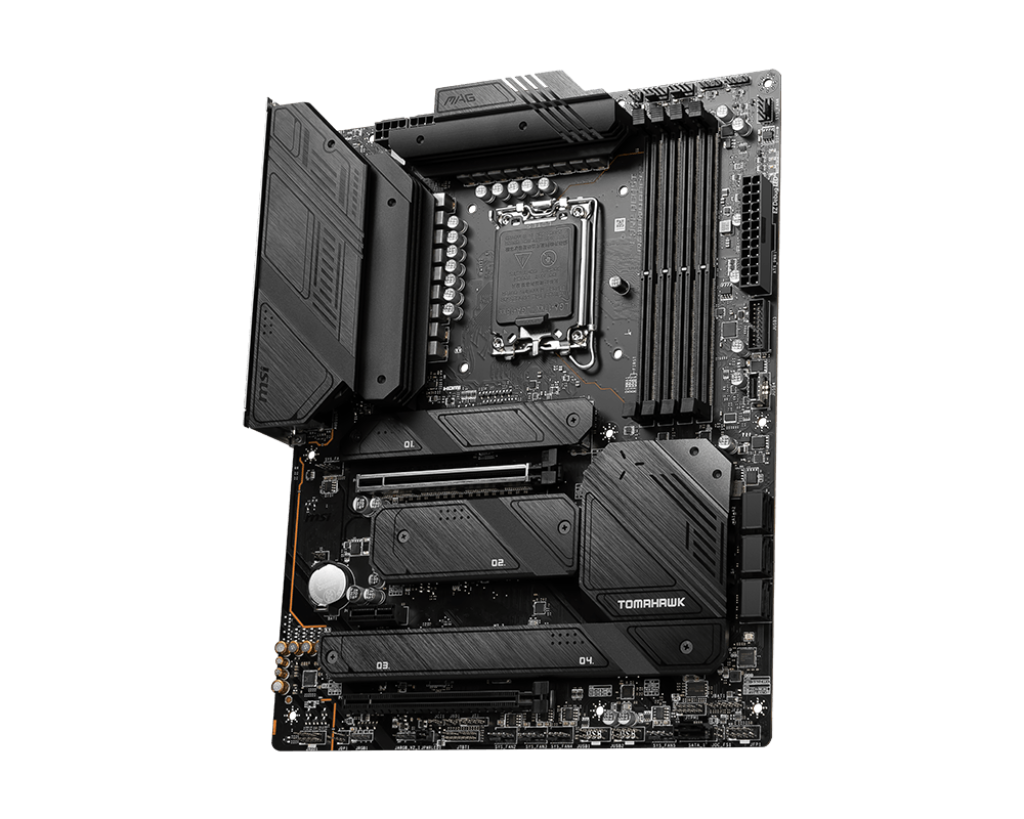

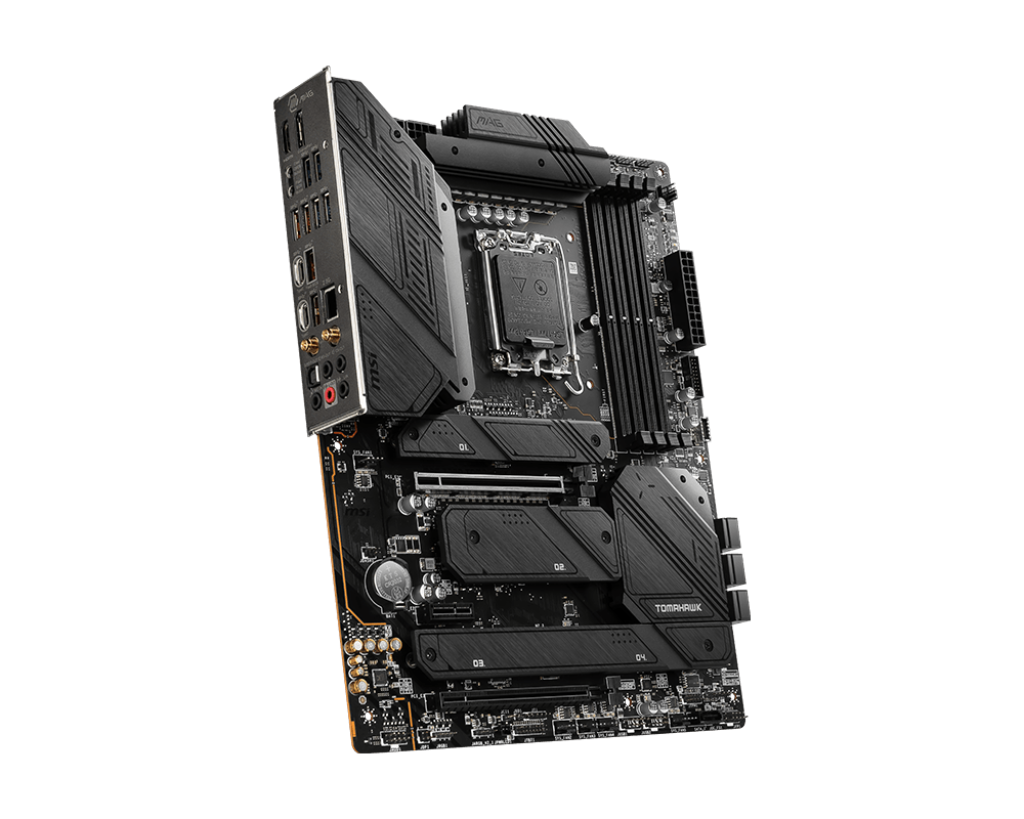

MAG Z790 TOMAHAWK WIFI

  • Unterstützt Intel® Core™, Pentium® Gold und Celeron® Prozessoren der 12., 13. und 14. Generation für LGA 1700 Sockel
  • Unterstützt DDR5 Memory, bis zu 7200+(OC) MHz
  • Verbessertes Stromdesign: 16+1+1 Duet Rail Power System, zwei 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost
  • Blitzschnelles Gaming: PCIe 5.0-Steckplätze, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Kühllösung: Erweiterter Kühlkörper und M.2 Shield Frozr sind für ein Hochleistungssystem und Non-Stop-Gaming ausgelegt
  • AUDIO BOOST 5: Erlebe ein intensives Gaming-Erlebnis mit Sound in Studioqualität
  • Hochwertiges PCB: 6 Schichten PCB, hergestellt aus 2oz dickem Kupfer und Material auf Server-Niveau
    • Chipset INTEL Z790
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    Memory 4x DDR5, Maximum Memory Capacity 256GB
    Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 2x PCI-E x16 slot (Qty)
    Supports x16/x4
    1x PCI-E x1 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Audio Realtek® ALC4080 Codec
    7.1-Channel USB High Performance Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel
    Storage 4x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    7x SATA 6G (Qty)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    * SATA_A1_A2 do not support RAID function.
    USB 4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    4x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    LAN Intel® 2.5Gbps LAN
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED FEATURE 4x EZ Debug LED

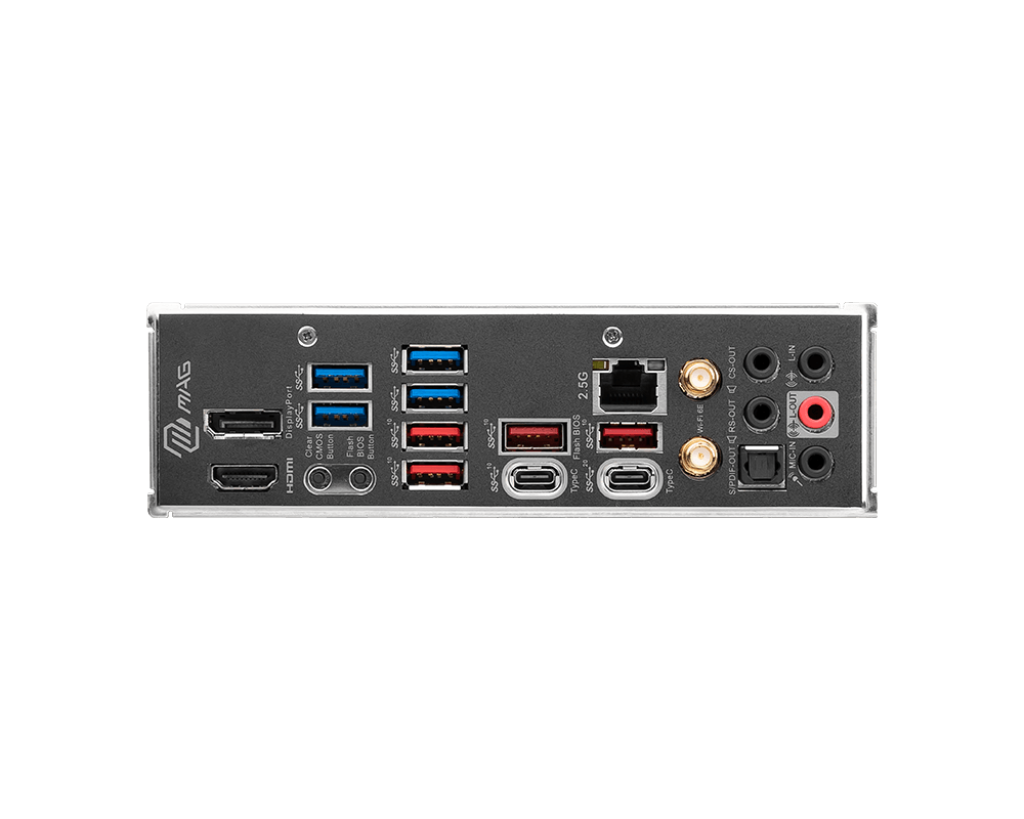

    BACK PANEL PORTS
    1. DisplayPort 1.4
    2. USB 3.2 Gen 1 5Gbps Type-A
    3. USB 3.2 Gen 2 10Gbps Type-A
    4. 2.5G LAN Port,
    5. HD Audio Connectors
    6. HDMI™ 2.1 Port
    7. Clear CMOS Button
    8. Flash BIOS Button
    9. USB 3.2 Gen 2 10Gbps Type-C
    10. USB 3.2 Gen 2x2 20Gbps Type-C
    11. Wi-Fi / Bluetooth Antenna
    12. Optical S/PDIF OUT
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    BOX CONTENT
    PCB Info ATX
    243.84mmx304.8mm
