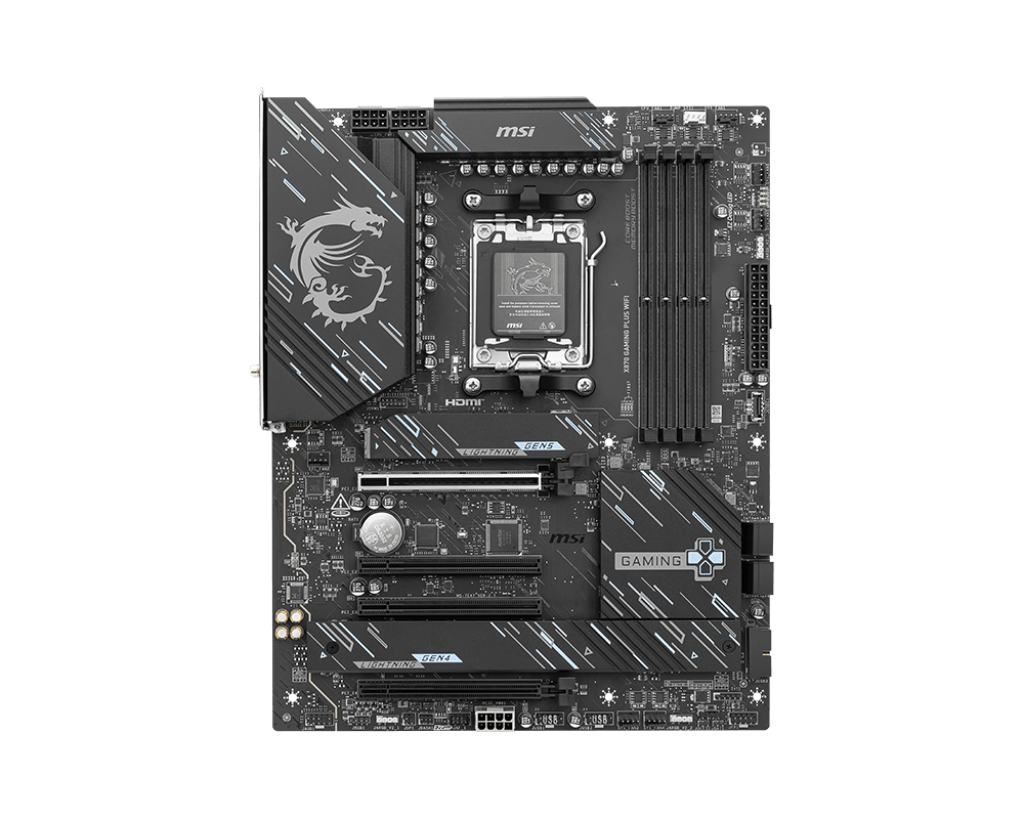

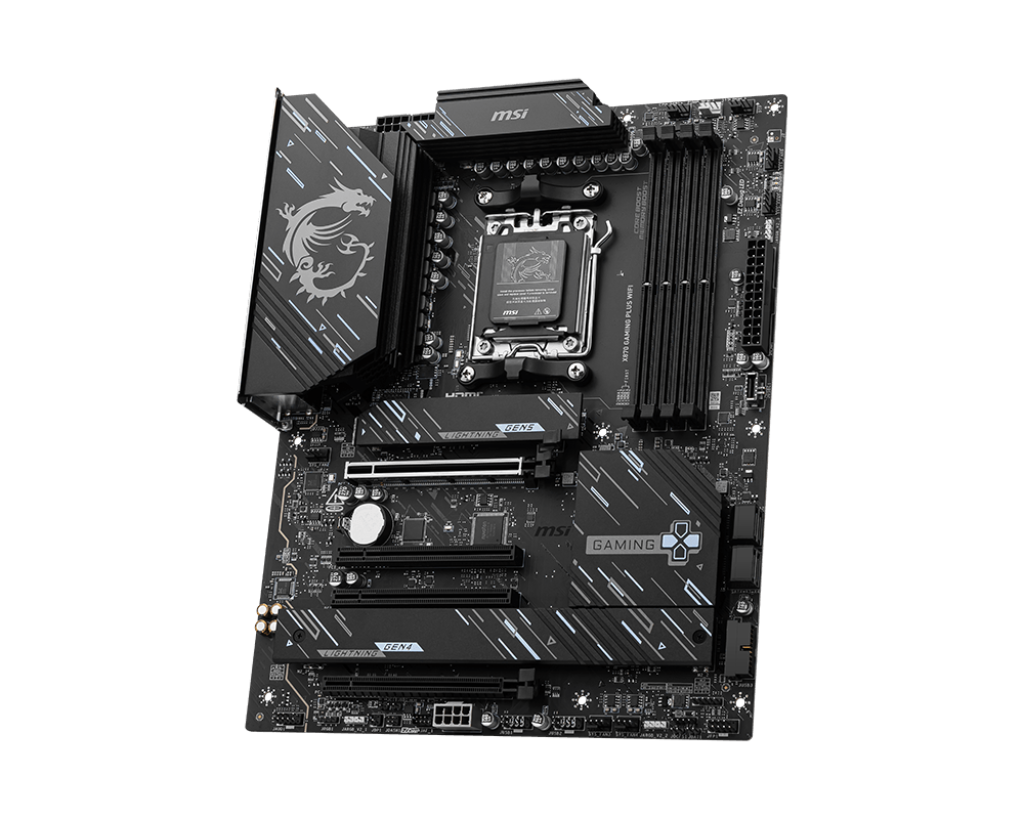

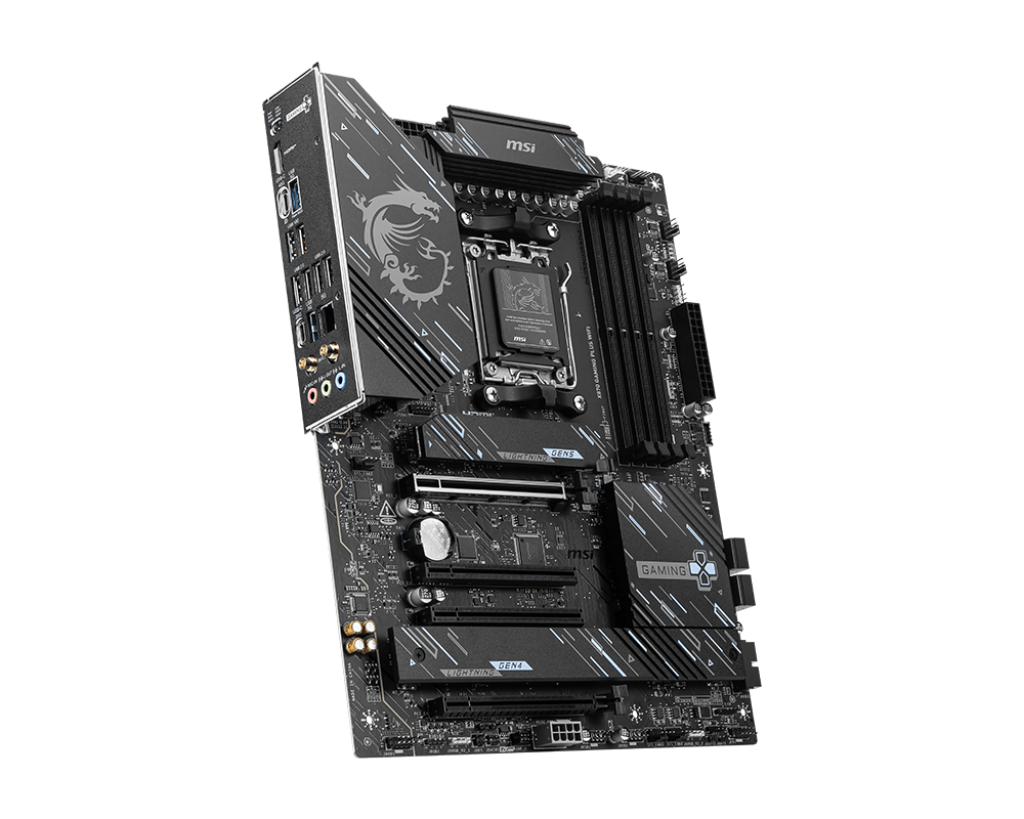

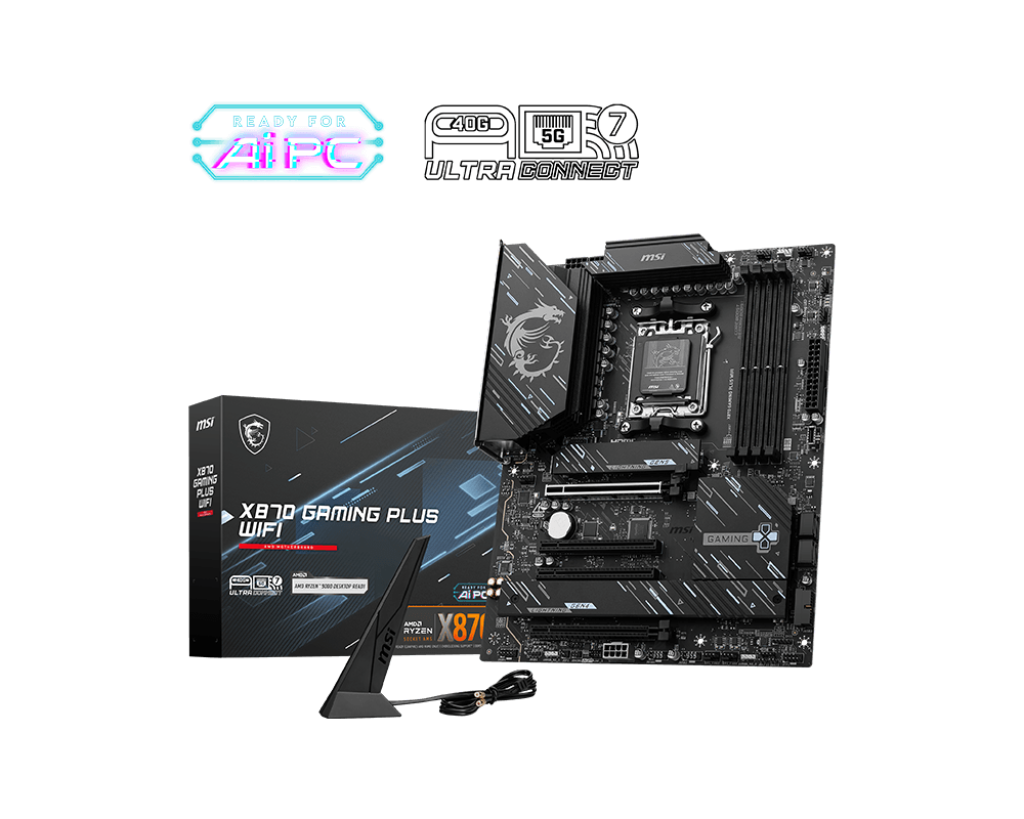

MSI Motherboard X870 GAMING PLUS WIFI

€269,00
inkl. MwSt

Liefertermin
Bestelle heute, und du erhältst das Paket zwischen 19 Mai - 21 Mai

MSI Punkte
Du kannst beim Kauf dieses Produkts etwa 41 MSI-Punkte erhalten, wenn du bereits am MSI Prämienprogramm teilnimmst.

Garantie
Garantie von 3 Jahren

Free Package

  • Unterstützt AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop-PC Prozessoren
  • Unterstützt DDR5 Speicher, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, duale 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost, 8 Schichten PCB aus 2oz dickerem Kupfer und Material auf Server-Niveau
  • Frozr Guard: Vergrösserter Kühlkörper, MOSFET-Wärmeleitpads mit einem Wert von 7 W/mK, zusätzliche Drosselspulen und EZ M.2 Shield Frozr II
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II und EZ Antenne
  • Blitzschnelles Gaming-Erlebnis: PCIe 5.0 Steckplätze, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 und 5G LAN mit Wi-Fi 7
  • Audio Boost : Klangqualität in Studioqualität für ein besonders intensives Gaming-Erlebnis
    • Chipset AMD X870
    CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s

    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • The DIMM slots on this motherboard have double-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics 1x HDMI™
    Support HDMITM 2.1, maximum resolution of 4K 60Hz*
    1x Type-C DisplayPort
    USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 4x PCI-E x16 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

    PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

    * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
    Audio Realtek® ALC897
    7.1-Channel High Definition Audio
    Storage 3x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
    4x SATA 6G (Qty)

    M2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

    *Please refer to the manual for M.2 SSD heatsink restrictions.
    RAID ••Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

    *SATA_A1~A4 do not support RAID function.
     *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    2x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    1x USB 40Gbps Type C (Rear)
    LAN Realtek® 8126VB 5G LAN
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x CPU Fan
    1x PUMP_SYS Fan
    6x System Fan
    1x ARGB+FAN Header (JAF_1)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE 4x EZ Debug LED

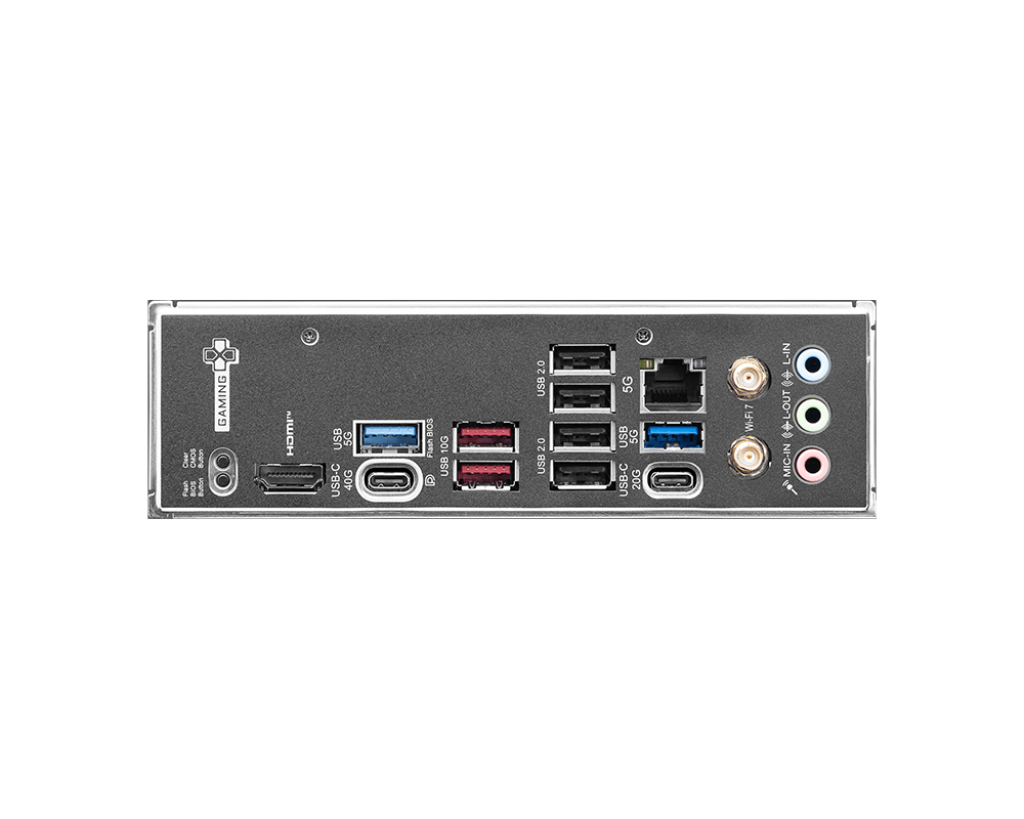

    BACK PANEL PORTS
    1. Clear CMOS Button
    2. USB 5Gbps Type-A
    3. USB 10Gbps Type-A
    4. USB 2.0
    5. 5G LAN
    6. Wi-Fi / Bluetooth
    7. Audio connectors
    8. Flash BIOS Button
    9. HDMI™
    10. USB 40Gbps Type-C
    11. USB 2.0
    12. USB 20Gbps Type-C
    13. USB 5Gbps Type-A
    OPERATING SYSTEM Support for Windows® 11 64-bit
    BOX CONTENT
    PCB Info ATX
    243.84mmx304.8mm
    MSI Deutschland

    MSI Motherboard X870 GAMING PLUS WIFI

    €269,00
    • Unterstützt AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop-PC Prozessoren
    • Unterstützt DDR5 Speicher, Dual Channel DDR5 8200+ MT/s (OC)
    • Ultra Performance: 14+2+1 Duet Rail Power System, duale 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost, 8 Schichten PCB aus 2oz dickerem Kupfer und Material auf Server-Niveau
    • Frozr Guard: Vergrösserter Kühlkörper, MOSFET-Wärmeleitpads mit einem Wert von 7 W/mK, zusätzliche Drosselspulen und EZ M.2 Shield Frozr II
    • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II und EZ Antenne
    • Blitzschnelles Gaming-Erlebnis: PCIe 5.0 Steckplätze, Lightning Gen 5 x4 M.2
    • Ultra Connect: USB4 und 5G LAN mit Wi-Fi 7
    • Audio Boost : Klangqualität in Studioqualität für ein besonders intensives Gaming-Erlebnis
    • Chipset AMD X870
    CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s

    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • The DIMM slots on this motherboard have double-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics 1x HDMI™
    Support HDMITM 2.1, maximum resolution of 4K 60Hz*
    1x Type-C DisplayPort
    USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 4x PCI-E x16 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

    PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

    * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
    Audio Realtek® ALC897
    7.1-Channel High Definition Audio
    Storage 3x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
    4x SATA 6G (Qty)

    M2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

    *Please refer to the manual for M.2 SSD heatsink restrictions.
    RAID ••Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

    *SATA_A1~A4 do not support RAID function.
     *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    2x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    1x USB 40Gbps Type C (Rear)
    LAN Realtek® 8126VB 5G LAN
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x CPU Fan
    1x PUMP_SYS Fan
    6x System Fan
    1x ARGB+FAN Header (JAF_1)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS
    1. Clear CMOS Button
    2. USB 5Gbps Type-A
    3. USB 10Gbps Type-A
    4. USB 2.0
    5. 5G LAN
    6. Wi-Fi / Bluetooth
    7. Audio connectors
    8. Flash BIOS Button
    9. HDMI™
    10. USB 40Gbps Type-C
    11. USB 2.0
    12. USB 20Gbps Type-C
    13. USB 5Gbps Type-A
    OPERATING SYSTEM Support for Windows® 11 64-bit
    BOX CONTENT
    PCB Info ATX
    243.84mmx304.8mm
