MSI Motherboard MEG X870E GODLIKE
€1.239,00
Grundpreis
/
Nicht verfügbar
inkl. MwSt
Verfügbarkeit für Abholungen konnte nicht geladen werden
Liefertermin
Liefertermin
Bestelle heute, und du erhältst das Paket zwischen
14 Mai
-
16 Mai
MSI Punkte
MSI Punkte
Du kannst beim Kauf dieses Produkts etwa
186
MSI-Punkte erhalten, wenn du bereits am MSI Prämienprogramm teilnimmst.
Garantie
Garantie
Garantie von 3 Jahren

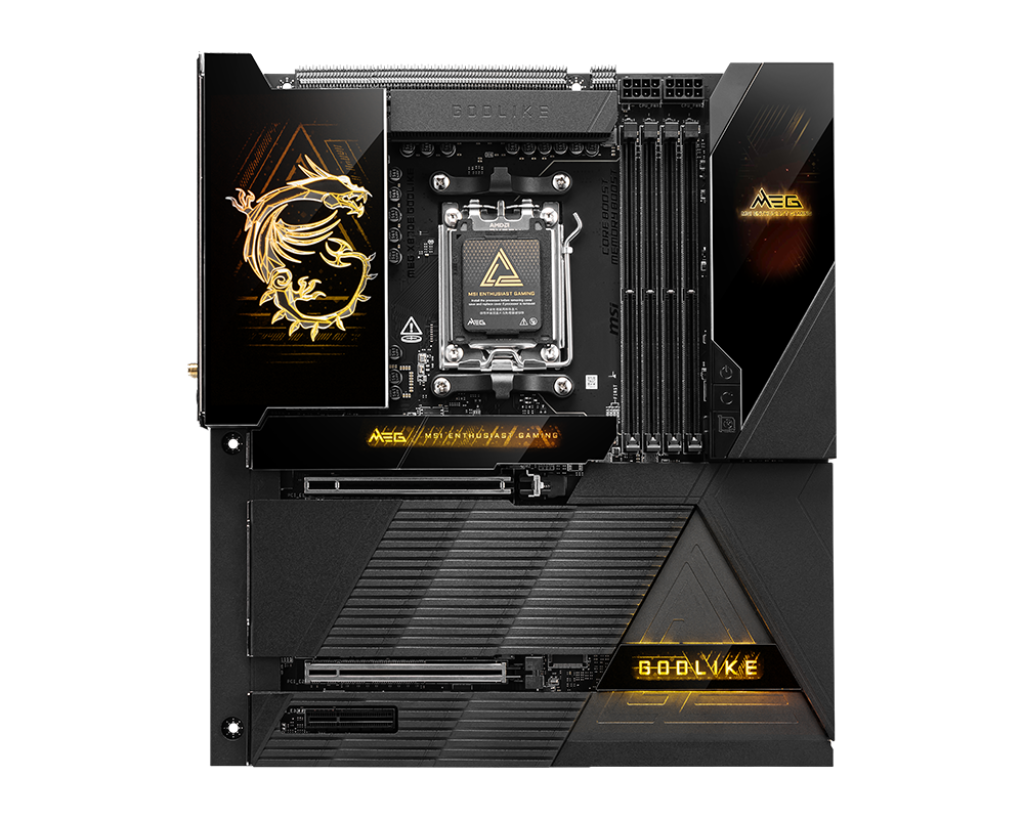

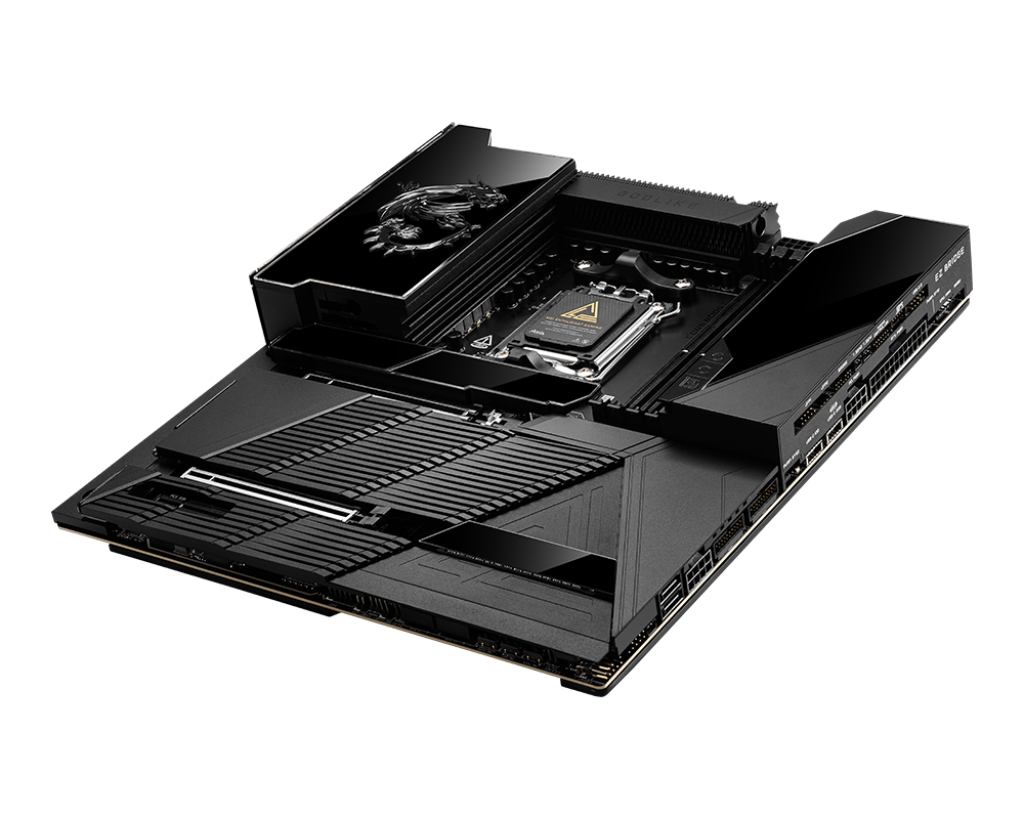

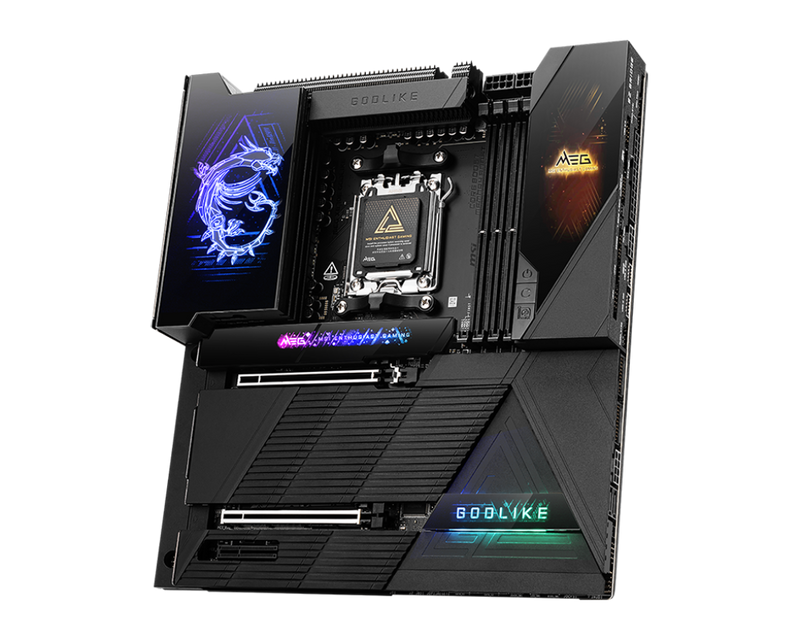

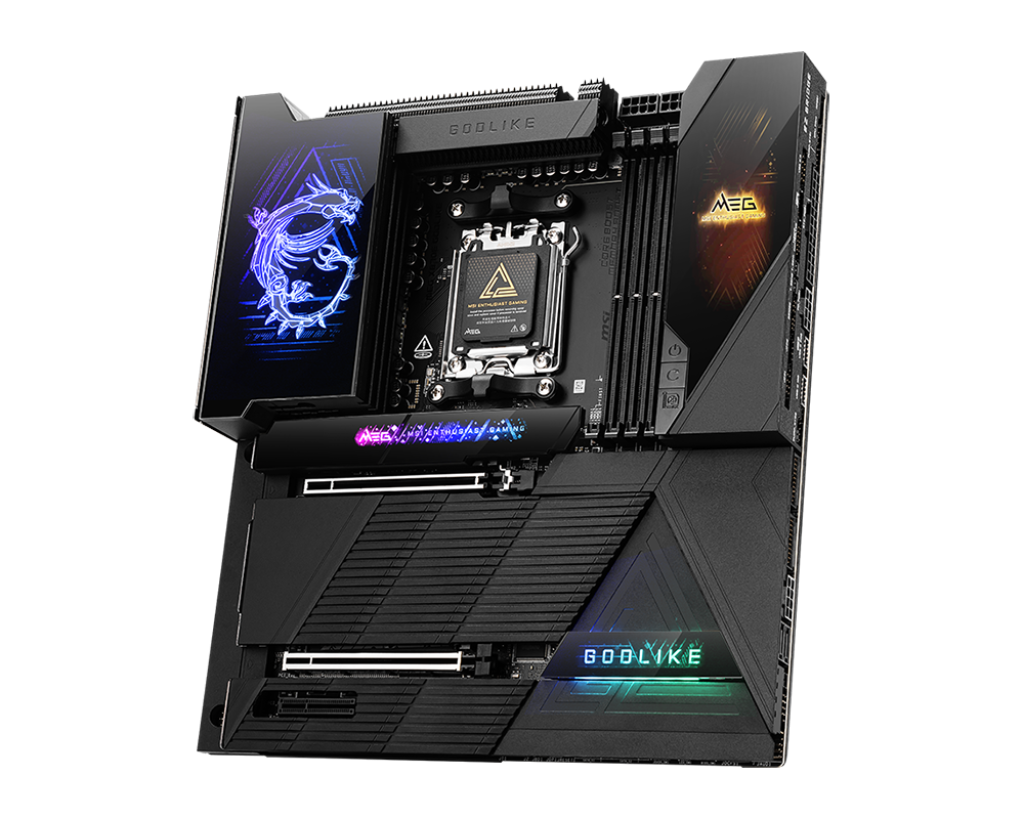

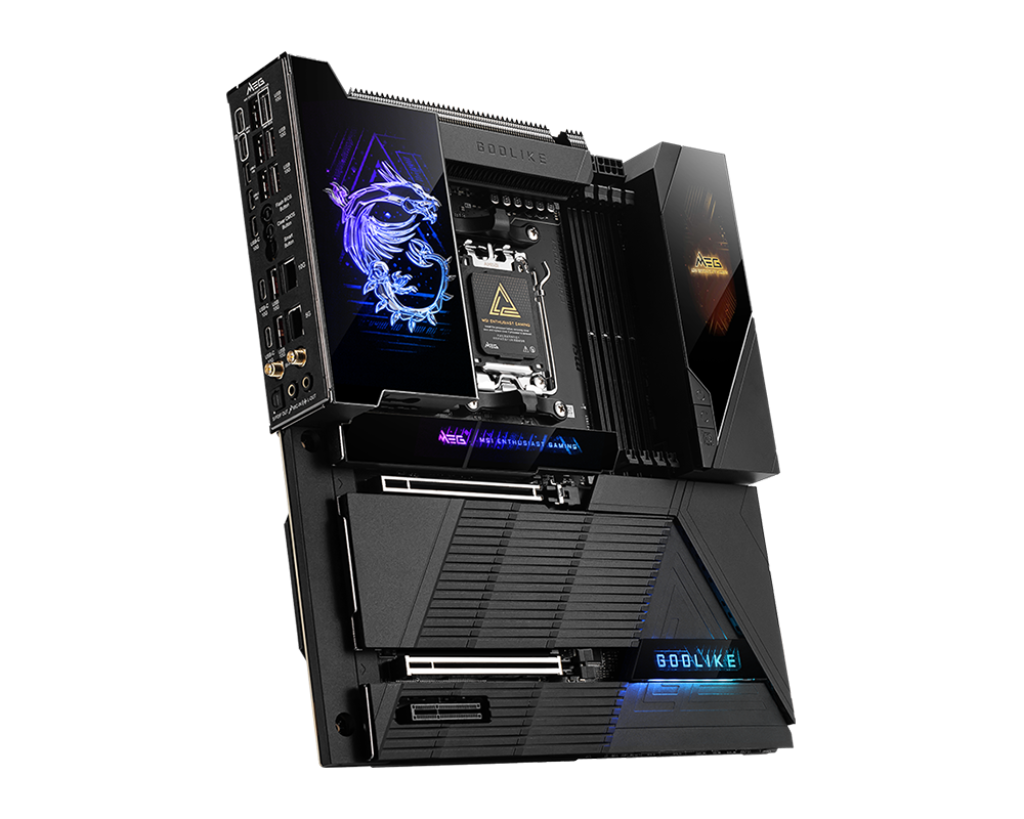

MSI Motherboard MEG X870E GODLIKE
€1.239,00
Grundpreis
/
Nicht verfügbar
Free Package
MEG X870E GODLIKE
- Unterstützt Prozessoren der AMD Ryzen™ 9000/8000/7000-Serie für Desktop-PCs
- Unterstützt DDR5-Speicher, Dual Channel DDR5 8400+MT/s (OC)
- Dynamic Dashboard III: Der 3,99"-LCD-Bildschirm ermöglicht Echtzeit-Hardwareüberwachung, Fehlerbehebung, BIOS-Updates und personalisierte Anzeigeoptionen..
- M.2 XPANDER-Z SLIDER GEN5: Die nur einen Steckplatz dicke M.2-Erweiterungskarte verfügt über zwei Hochgeschwindigkeits-Gen5-M.2-Steckplätze. Dank des EZ-Slide-Designs sind SSD-Upgrades mühelos durchführbar.
- Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, zwei 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost, 10 Schichten PCB aus 2 Oz dickem Kupfer und Material auf Server-Niveau.
- Frozr Guard: Wellenförmiges Kühlrippen-Design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK Wärmeleitpads, Doppelseitiges M.2 Shield Frozr und Frozr AI Software.
- EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
- Ultra Connect: 10G LAN + 5G LAN, Full-Speed-WLAN 7 und USB4.
- Blitzschneller Speicher: Steckplätze für PCIe 5.0, Lightning Gen 5 x4 M.2, Front-USB 20G mit 60 W USB-Stromversorgung.
- Audio Boost 5 HD: Premium-Audioprozessor ALC4082 in Kombination mit dem ESS-Audio-DAC und -Verstärker für bestes Hi-Res Audio.
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 7x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card. ** Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. **RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors. |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4. ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. |
| LAN | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x PUMP_SYS Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| LED FEATURE | 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch |

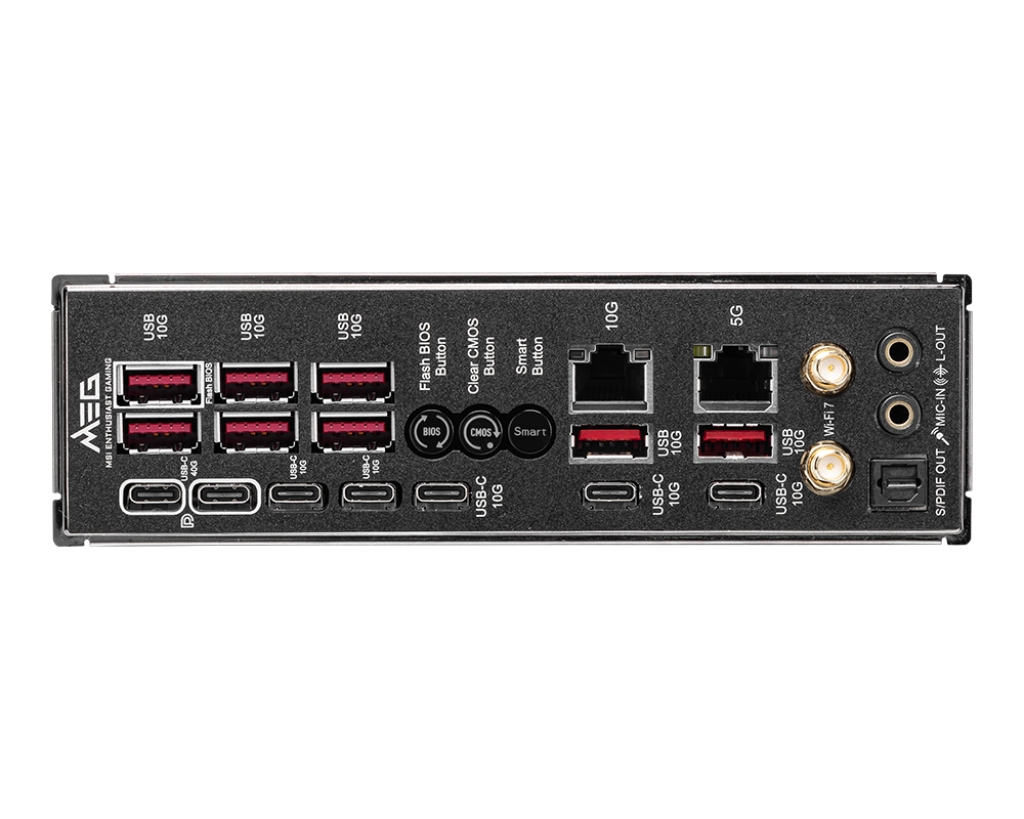

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| BOX CONTENT |  |
| PCB Info | E-ATX 304.8mmx277mm |
