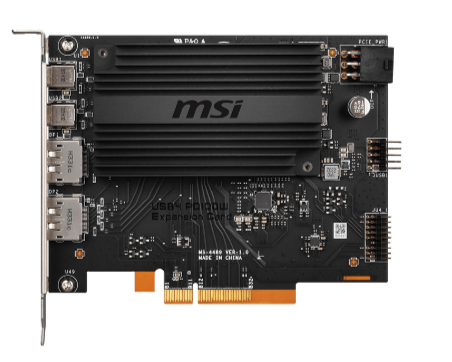

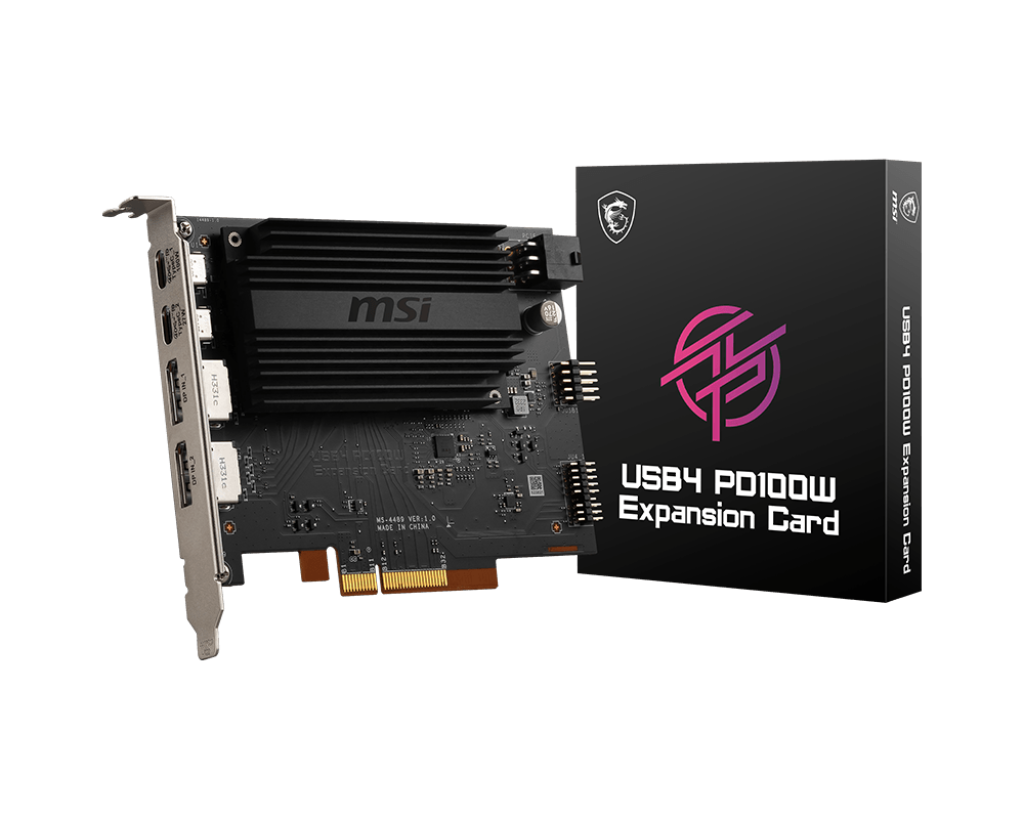

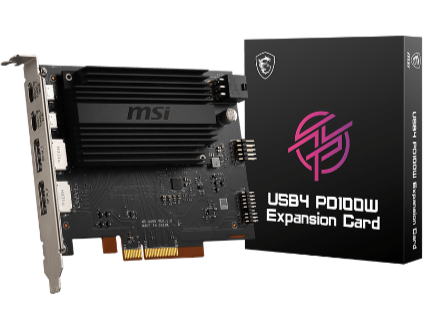

MSI USB4 Erweiterungskarte PD100W (2xUSB-C, 2x DP)

MSI Mainboard USB4 Erweiterungskarte PD100W

SPECIFICATIONS
Chipset: Asmedia® 4242 USB 4.0 Controller
External connector: 2 x USB 4.0 ports (USB-C), 2 x DisplayPort input ports

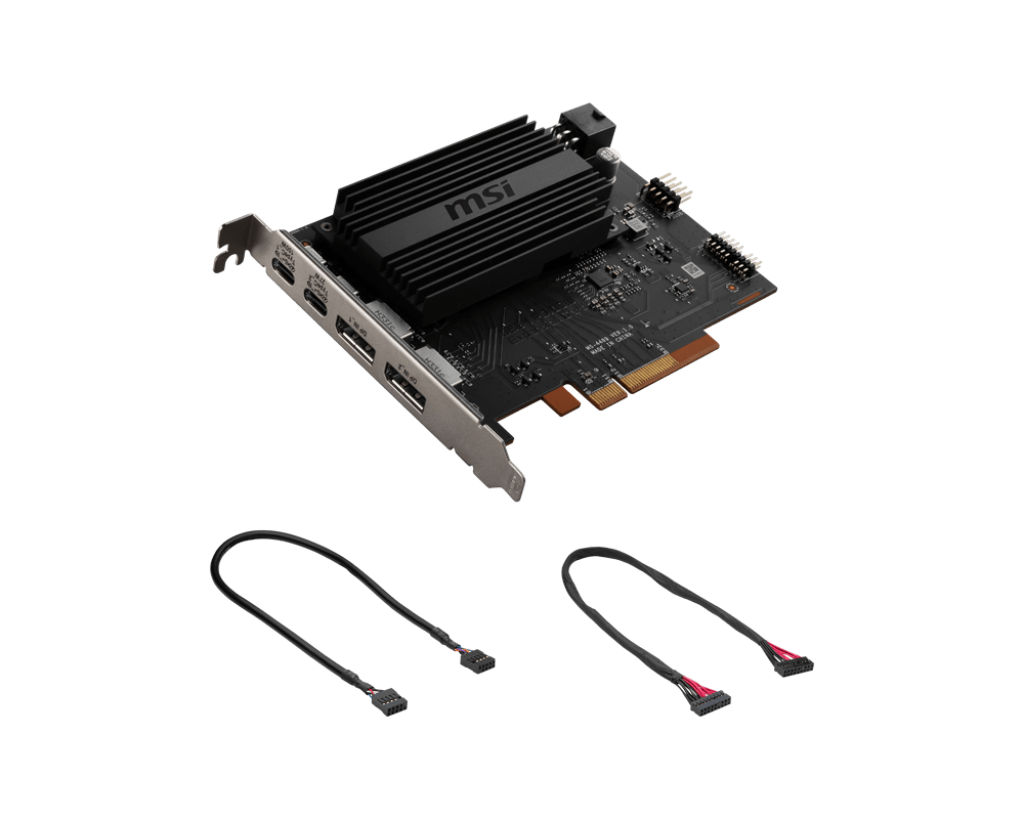

Accessories: 1 x U4 header cable,1 x USB 2.0 cable
Form Factor: 5.2 inch x 4.11 inch (13.2 cm x 10.4 cm)

∙2 x USB 4.0 ports (USB-C)
 • Supports up to 40Gbps with USB 4.0 devices
 • Supports up to 20V/5A, 100W power charging for USBC_1
 • Supports up to 9V/3A, 27W power charging for USBC_2
 • Supports USB 4.0 Display (need to connect the DisplayPort output port on the    motherboard or discrete graphics card to the DisplayPort input port on the USB4
PD100W Expansion Card or both Type C ports only
support USB 4.0 data transmission)
 • Compatible with Thunderblot™ 3.0 specification

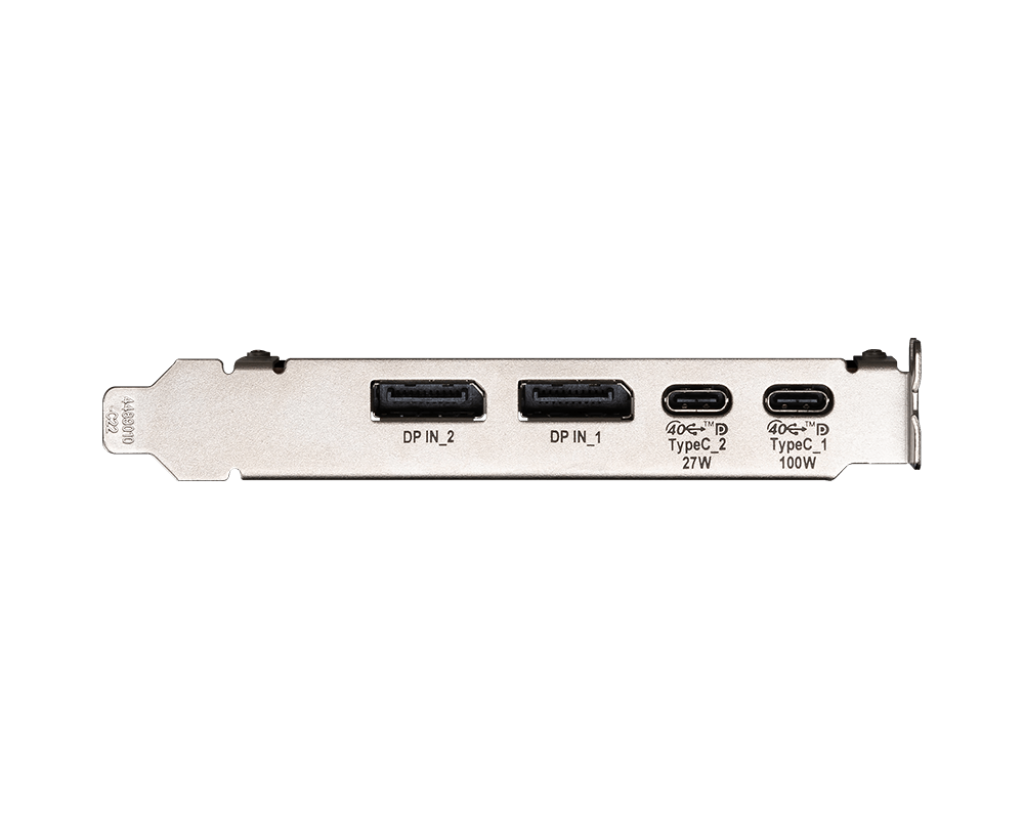

   ∙2 x DisplayPort Input ports
 • DisplayPort 1.4 specification
   ∙1 x 18-pin U4 header
   ∙1 x USB 2.0 header
   ∙1x 6-pin power connecto
